Co-Extrusion WPC Cladding. Five-Channel Irregular.

For projects chasing ultimate performance. Second generation. 219x26mm super-wide. Original five-hole irregular hollow structure. Co-extrusion tech meets innovative structural acoustics. Visual impact? Extraordinary. Noise reduction? Breakthrough. Structural reinforcement? Advanced. Lightweight? Achieved. High-end residences, hotels, schools-environments needing quiet? Ideal choice. Actually ideal.

Product Specifications

Product Name	Co-extrusion wpc cladding
Size	219mm*26mm(Width x Thickness)
Length	2.2m/2.9m /3m(Customizable)
Weight per meter	2.96kg/m
Material	60%Wood powder +30%HDPE +10%Additives
Color	Sliver Grey, Teak, Rosewood, Maple
Core technology	Co-extrusion + Five-hole irregular hollow structure
Installation	Joist +Metal Clip +Screw

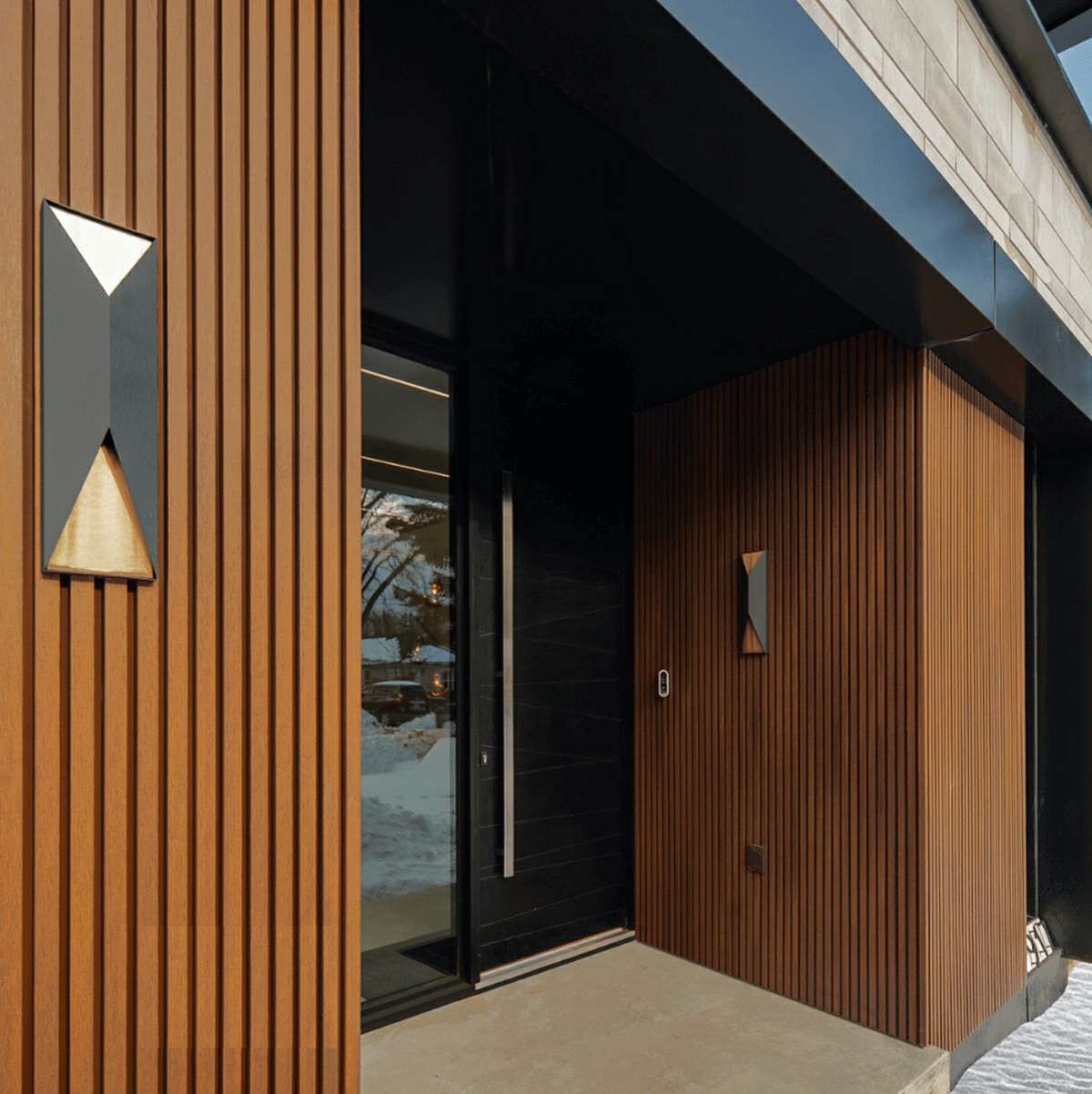

Applicable scenarios	High-end residential exteriors, commercial buildings, public curtain walls

Product Detail

Five cavities-different sizes, non-symmetrically arranged. Sound transmission path? Blocked. Sound bridge? Disrupted. Airborne sound insulation? ≈15% better than conventional hollow structures.
Precise mechanical optimization. Asymmetric force-bearing structure. Wind pressure hits? Temperature changes? Internal stress distributes uniformly. Bending strength? Superior. Deformation resistance? Superior. Long-term flatness? Ensured.

Customer FAQs

Q: "How's five-hole irregular different from regular four-hole?"

A: Core difference: acoustics + structural mechanics. Four-hole regular is "engineering optimization." Five-hole irregular? Innovative upgrade combining optimal acoustic performance AND structural stability. It's the next level.

Q: "Suitable for high-rise buildings? Wind pressure resistance?"

A: Extremely suitable. Enhanced mechanical design from irregular structure. 26mm thickness. High-density core material. Wind pressure resistance? Outstanding. Plus lightweight feature reduces building structure load. High-rise exteriors? Ideal choice.

Our Advantages

Acoustic innovation

Five-hole irregular structure. 15% sound insulation improvement. Quiet architectural environment? Created.

Structural reinforcement

Asymmetric force design. Bending strength outstanding. Deformation resistance outstanding.

Lightweight design

2.96 kg per meter. Transportation costs? Reduced. Installation efficiency? Enhanced.

Top-level co-extrusion protection

Anti-UV. Anti-stain. Anti-scuff. Color and texture? Ten years without deterioration.

Installation and Maintenance Instructions

Prep the wall. Flat. Solid. Clean. Waterproof breathable membrane underneath? Recommended. Moisture protection enhanced.
Fix the joists. Galvanized steel or aluminum. Vertical or horizontal as designed. Spacing ≤40cm. Support stable.
Leave ventilation cavity. ≥20mm between wall panel and wall. Air circulates. Moisture? Prevented.
Install panels from bottom up. Stainless steel clips. 5-7mm gap between panels. 8-10mm at wall corners. Temperature changes? Accommodated.

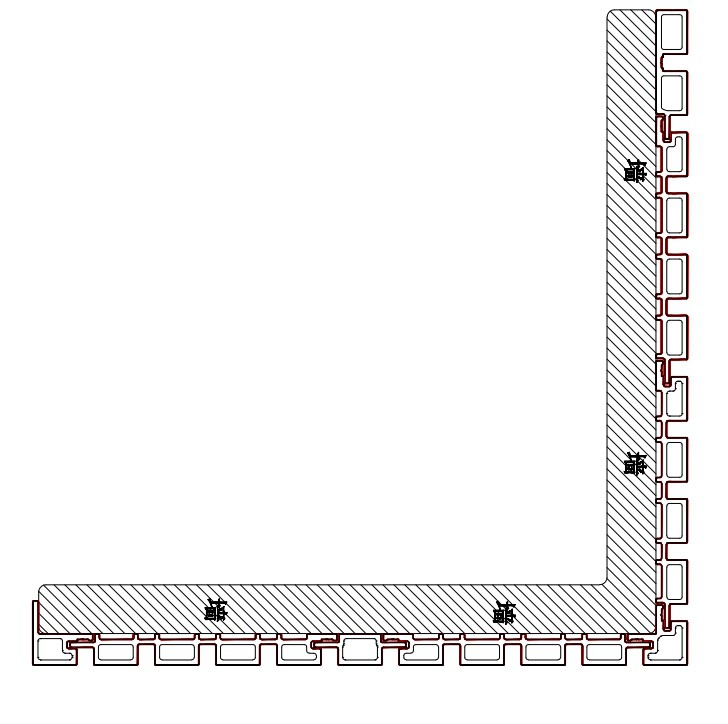

Finish edges. Corner strips. Edge sealing. Accessories complete the look. Refined. Professional.
Clean simple. Regular rinse with water. Stubborn stain? Neutral cleaner + soft cloth. Done.

Company Strength Showcase

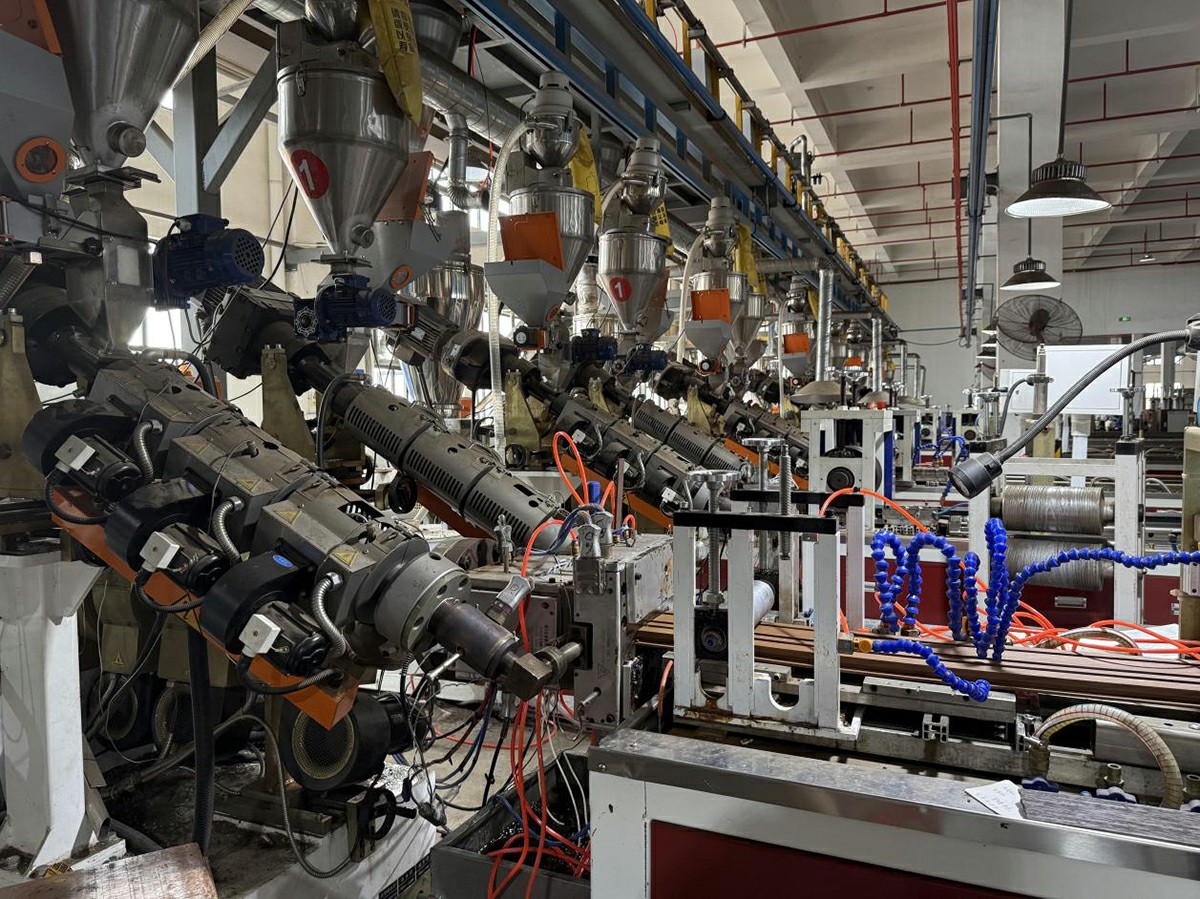

Large-scale production. Annual capacity over 20,000 tons. 80 professional lines. Large projects? Stable supply. Rapid delivery.
International certified. CE. ISO9001. SGS. INTERTEK. FSC. Multiple credentials. Quality assured.
Global experience. Sold to 50+ countries-Europe, Americas, Southeast Asia. Application cases across climates. Wealth of knowledge.

Why choose us?

15-year limited warranty. Five-hole irregular co-extruded wall panel. Covers material defects, surface anti-fading, structural integrity. Confidence extended.

Free sample service. Request physical samples. All colors, all textures. Feel the irregular structure quality yourself.

Customization available. Color. Length. Surface texture. Unique design requirements? Met.
