2nd Generation WPC Cladding 169*26mm

Second generation. Co-extrusion tech. 169x26mm-thickened, strong, stable. This is premium outdoor wall cladding. Double-layer protective structure. Weather resistance? Stronger. Service life? Longer. For high-end exterior wall projects? Ideal. Actually ideal.

Product Specifications

Product Name	Wpc fluted wall panel
Size	169mm*26mm(Width x Thickness)
Length	2.2m/2.9m /3m(Customizable)
Material	60%Wood powder +30%HDPE +10%Additives
Color	Sliver Grey, Teak, Rosewood, Maple
Core technology	Co-extrusion
Installation	Joist +Metal Clip +Screw

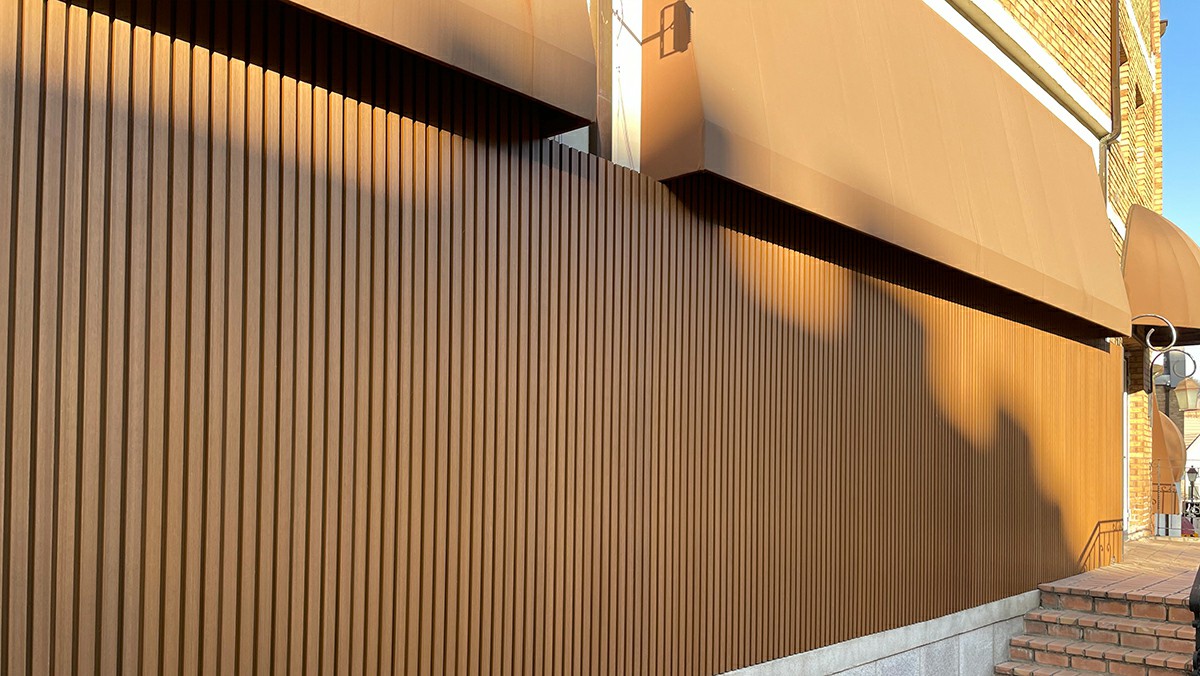

Applicable scenarios	Exterior wall, outdoor facade, villa, commercial building

Product Detail

Advanced co-extrusion surface. Anti-aging? Stronger.
169x26mm thickened structure. Strength up. Stability up.
Color stability? Excellent. Long-term outdoor exposure? Fading? Not easy.
High-end texture. Building appearance? Elevated. Grade? Lifted.

Customer FAQs

Q: "What is co-extrusion wall cladding exactly?"

A: Double-layer WPC panel. Surface layer: wear-resistant + anti-aging. Base layer: strength + stability. Much better than ordinary WPC. That's it.

Q: "Can 169x26mm go on exterior walls?"

A: Yes. Specifically designed for exterior use. Thickened 26mm structure? Strong enough for outdoor facade. Easily.

Q: "Will it fade or crack in sun and rain?"

A: No. Co-extrusion surface has strong UV resistance. Fade outdoors? Not easy. Crack? Not easy. Deform? Not easy.

Our Advantages

Integrated protection. UV rays? Blocked. Stains? Repelled. Scratches? Resisted. Color and texture? Ten years without change.

Sculptural thickness. 26mm gives facade rich layering. Light and shadow play across surface. Depth changes through day.

Zero maintenance cost. No polishing. No painting. No sealing. One-time investment. Lifelong benefit.

Installation and Maintenance Instructions

Prep the wall. Flat. Stable. Clean. Waterproof breathable membrane underneath? Recommended. Enhances moisture protection.
Fix the joists. Matching system. Vertical or horizontal as designed. Spacing ≤35cm. Support stable.
Leave ventilation cavity. ≥20mm between wall panel and wall. Air circulates. Moisture? Prevented.
Install panels from bottom up. Stainless steel clips. 5-7mm gap between panels. 8-10mm at wall corners. Temperature changes? Accommodated.
Finish edges. Corner strips. Edge sealing. Accessories complete the look. Refined. Professional.
Clean simple. Regular rinse with water. Stubborn stain? Neutral cleaner + soft cloth. Done.

Company Strength Showcase

International certified. CE. ISO9001. SGS. FSC. Multiple credentials. Quality assured.

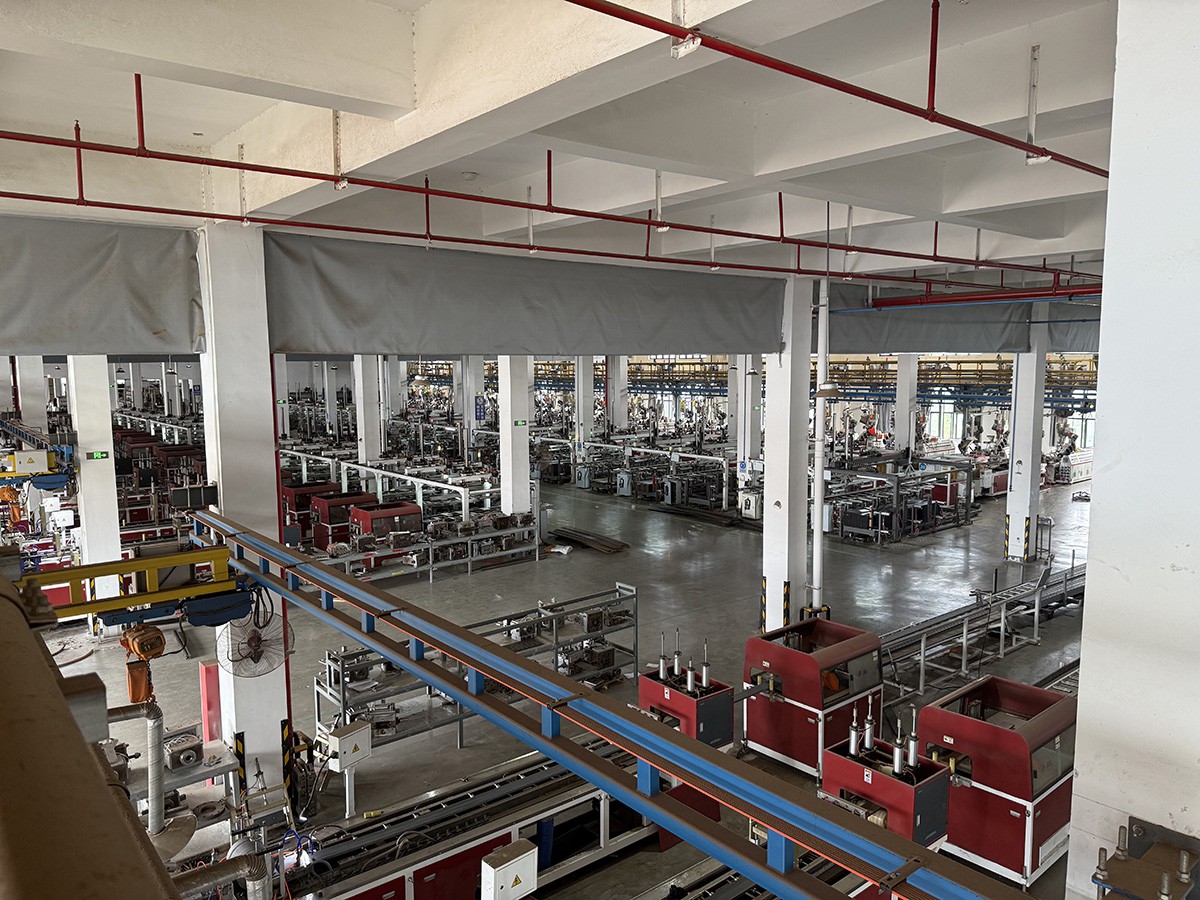

Large-scale production. Annual capacity over 15,000 tons. Large projects? Stable supply. Rapid delivery.
Global experience. Sold to 30+ countries-Europe, Americas, Southeast Asia. Application cases across climates. Wealth of knowledge.
